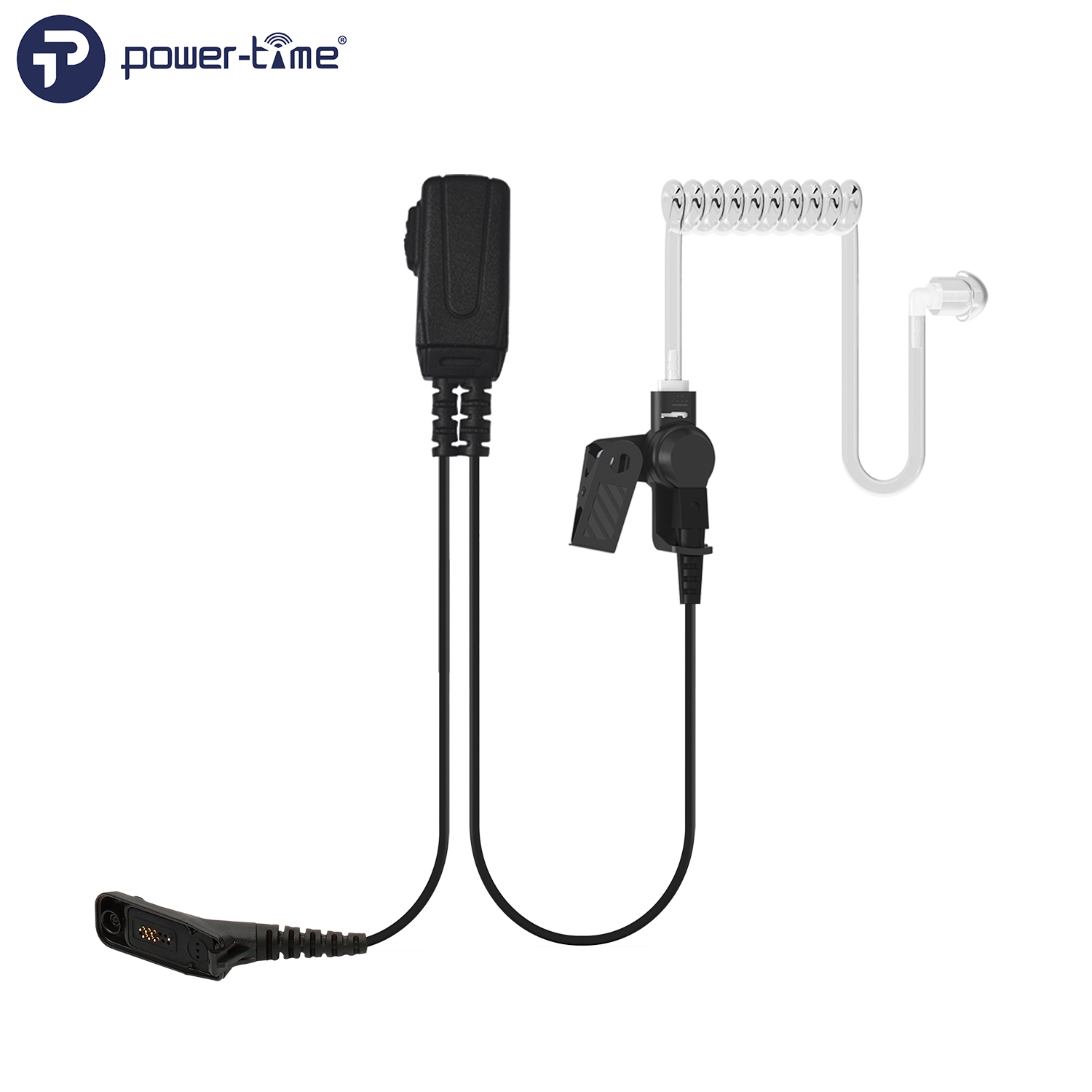

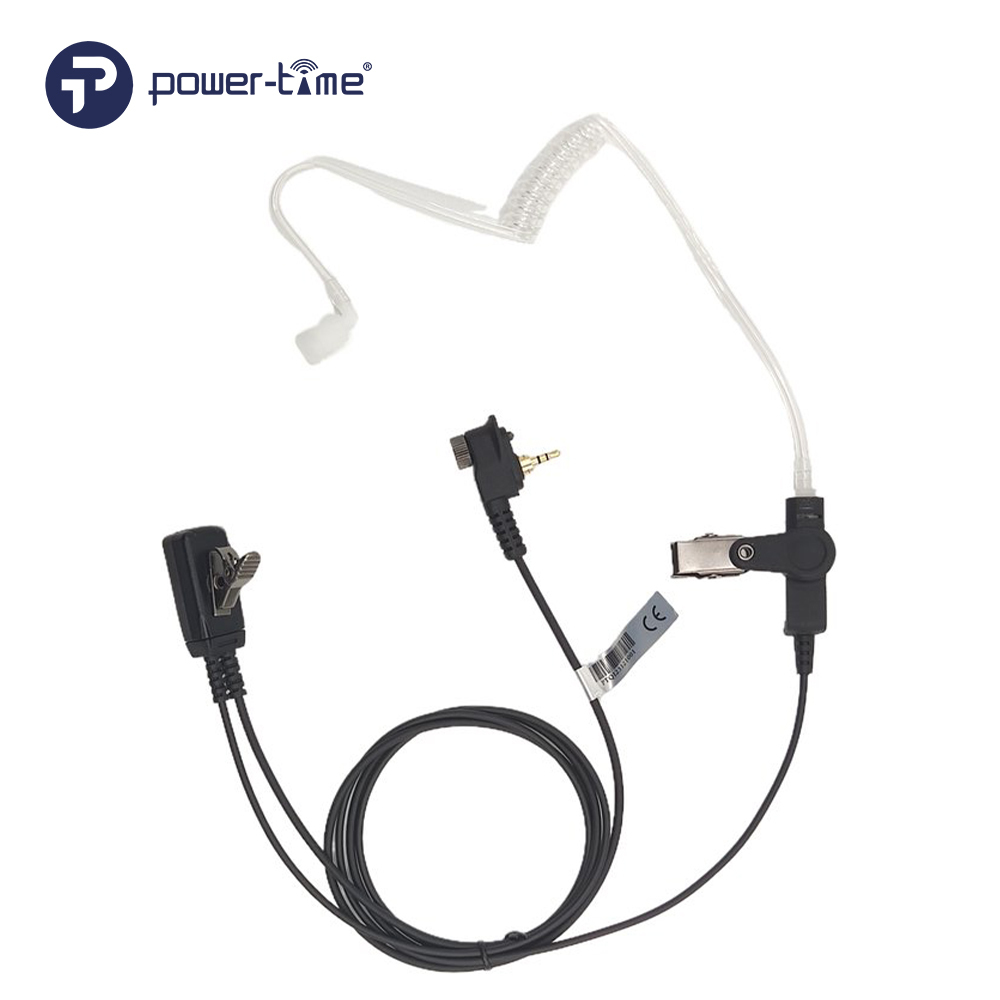

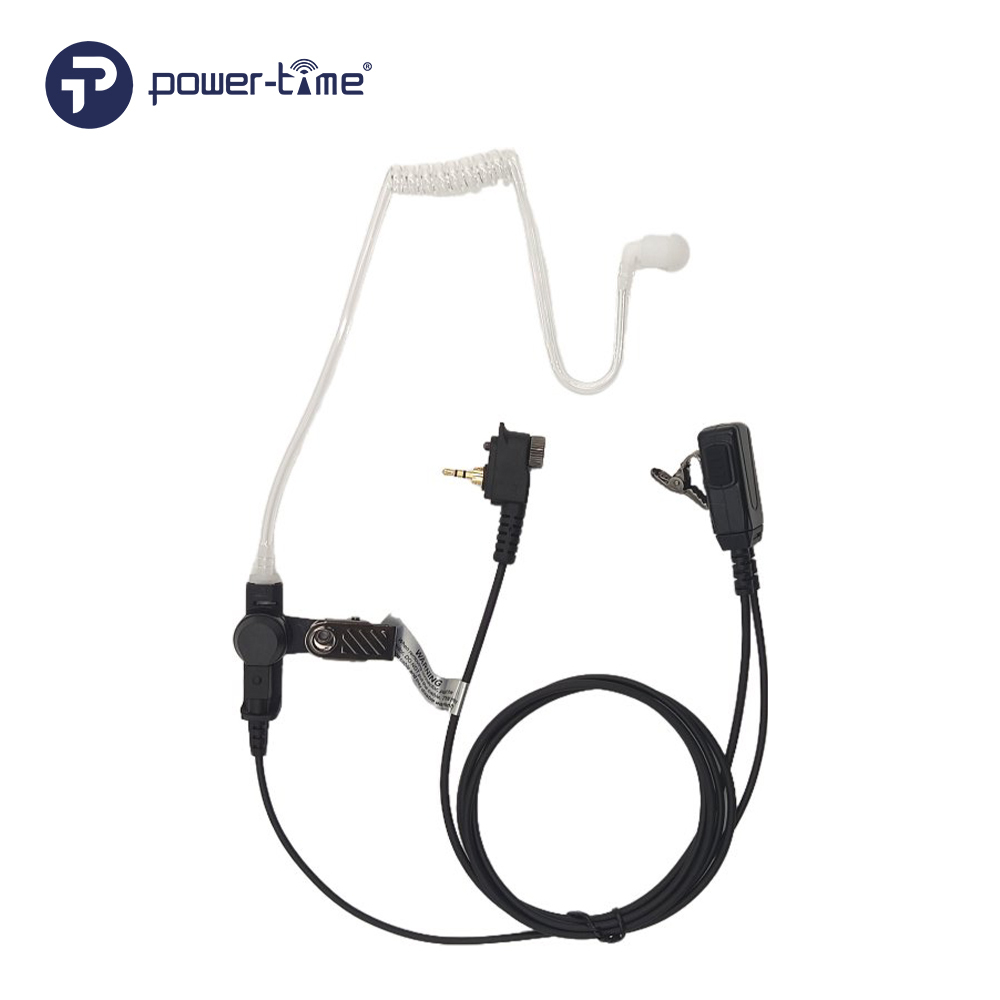

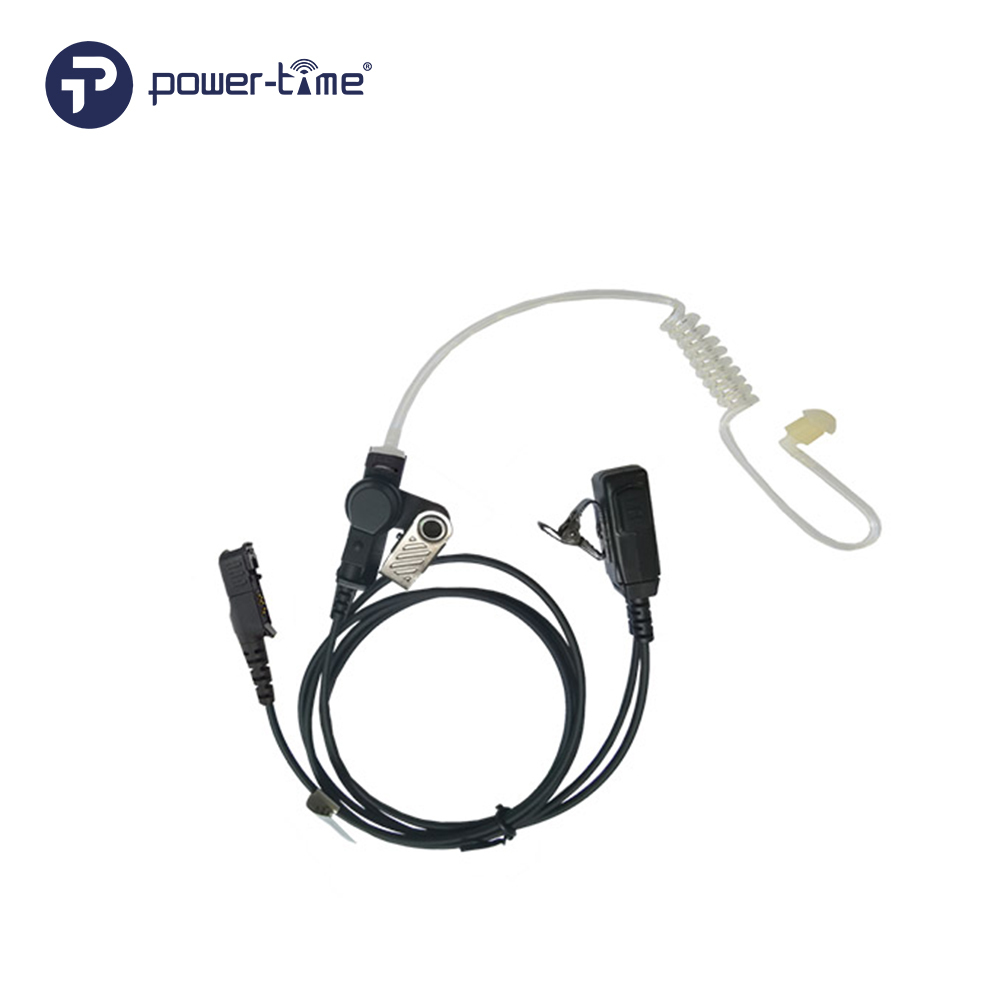

PTE-808 Single-Wire Acoustic Tube Earpiece with Replaceable Speaker Parts

No.PTE-808
Single-wire
Replaceable speaker component
  • PTE-808 Single-Wire Acoustic Tube Earpiece with Replaceable Speaker Parts
  • PTE-808 Single-Wire Acoustic Tube Earpiece with Replaceable Speaker Parts
  • PTE-808 Single-Wire Acoustic Tube Earpiece with Replaceable Speaker Parts
  • PTE-808 Single-Wire Acoustic Tube Earpiece with Replaceable Speaker Parts

Description

The PTE-808 is a single-wire acoustic tube earpiece built for professionals who need reliable, discreet communication throughout their shift. The integrated Push-to-Talk button keeps transmit control within easy reach, while the transparent acoustic tube ensures a low visual profile for surveillance and security operations.

The speaker component is designed with replaceable parts, extending the product's service life and simplifying maintenance. The Kevlar-reinforced cable provides resistance against stretching, cutting, and temperature extremes, making it suitable for demanding field conditions.

Key Features

  • Single-Wire Design – Clean, tangle-free layout with an integrated PTT button for quick, one-handed operation.

  • Replaceable Speaker Parts – Speaker components can be swapped out without replacing the entire earpiece, reducing maintenance costs and downtime.

  • Medical-Grade Acoustic Tube – The transparent tube is made from hygienic materials that stay comfortable during extended wear.

  • Kevlar-Reinforced Cable – Built with strong PU and Kevlar fibers for tensile strength and resistance to stretching, cutting, and temperature extremes.

  • Clear Audio Transmission – The dynamic speaker delivers crisp, intelligible audio for reliable communication in noisy environments.

  • Customizable Connector Options – Available with various connectors to suit different two-way radio brands, including Motorola, Kenwood, ICOM, and Hytera.

Speaker Specification
Type Electromagnetic Speaker
Impedance 200Ω±15% @1KHZ
Sensitivity 110±4dB @1KHZ
Frequency 200~4KHz
Rated input power 10mW
Maximum input power 300mW
Microphone Specification
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 200~4KHz
Current Consumption Max 0.5mA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.5-10V (DC)
Max Sound Pressure Level 115dB S.P.L( at 1K Hz THD<10%)

Typical Applications

Security patrols, surveillance operations, event management, law enforcement, and industrial settings where clear, private two-way communication is essential.

Customization & OEM Services

Power-Time offers full customization for the PTE-808, including connector options for specific radio brands, choice of PTT button configurations, tube materials and eartips, custom cable length and colors, as well as branding and packaging solutions. Contact our team to discuss your requirements.
