PTE-129F ATEX bone conduction headset for firefighter

No.PTE-129F
Atex Bone conduction headset
  • PTE-129F ATEX bone conduction headset for firefighter
  • PTE-129F ATEX bone conduction headset for firefighter
  • ATEX bone conduction headset for firefighter

Description

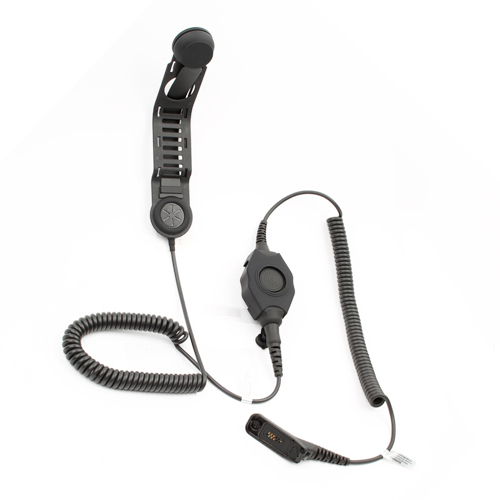

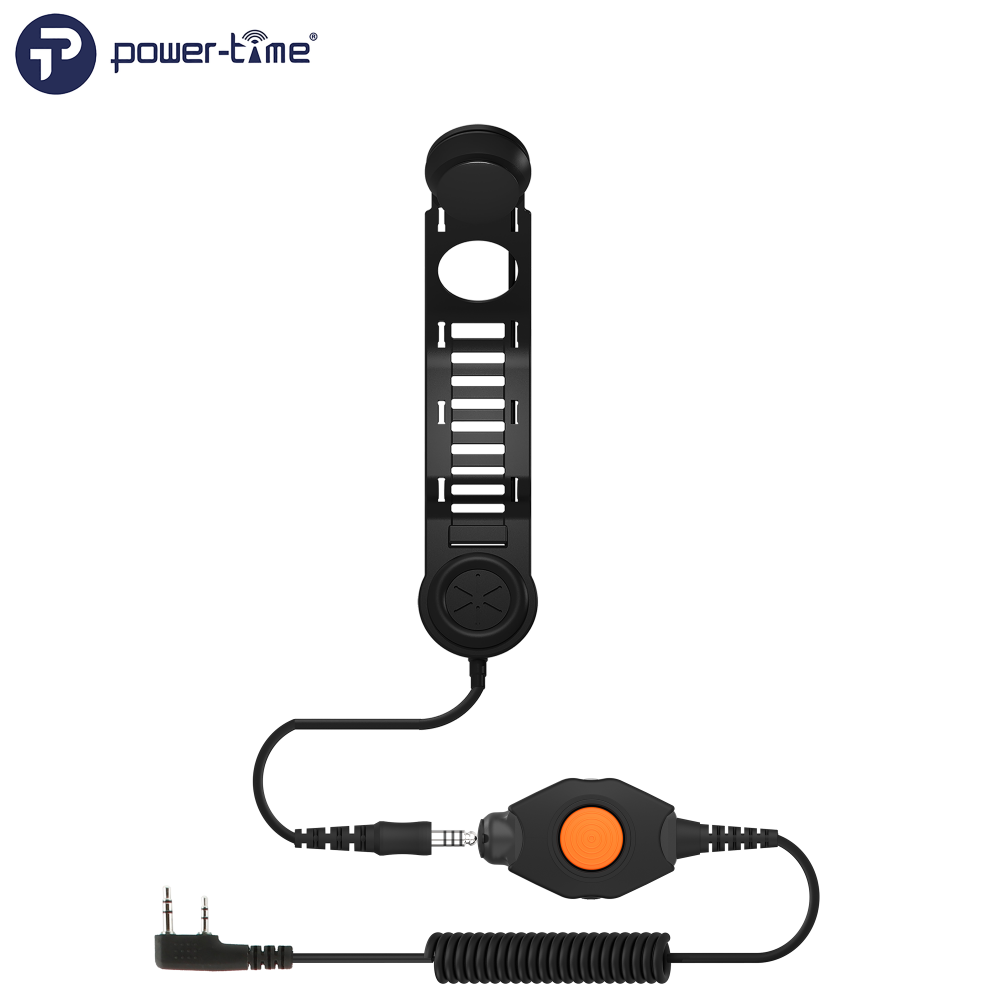

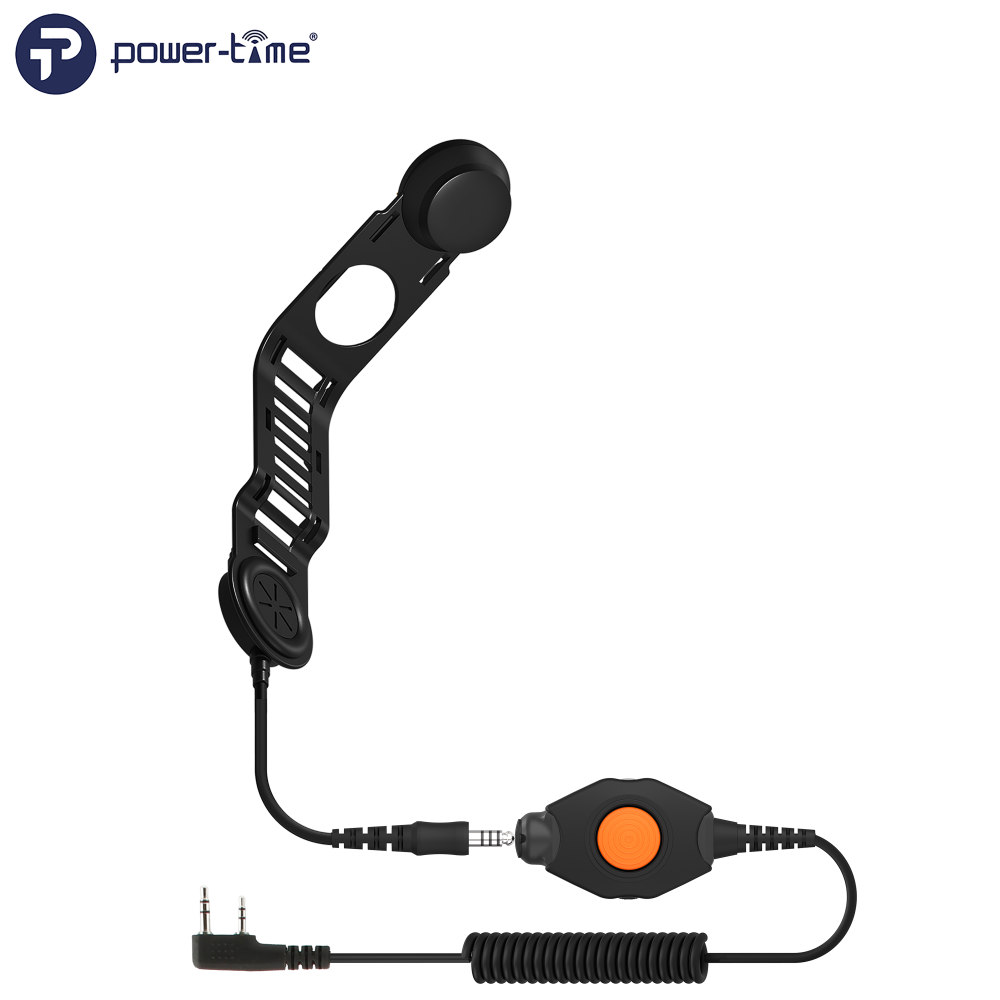

The CN Ex ib IIC T6 Gb-certified Unique Helmet Bone Conduction Headset PTE-129F uses skull bone vibration for sound transmission, and its unique shoulder strap design fits inside 99% of helmets.
It has an environmental PU cable reinforced with Kevlar (sturdy and tensile) and an IP67-certified quick-release PTT (large button for emergency responsiveness), suitable for fire fighting, rescue, mining, chemical engineering, etc.
Speaker Specification
Type Transducer Moving coil dynamic speaker
Impedance 32Ω±15% @1KHZ
Sensitivity 99±3%/40mW on a 6CC Coupler
Resonance freq 4KHZ±20%
Frequency respond 600Hz~4KHz
Rated input power 1mW
Maximum input power 0.5W

Microphone Specification
Type Pickup MIC
Sensitivity Range -31 ± 3dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 300-5KHz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound pressure Level 115dB S.P.L  THD<10% at 1K Hz
