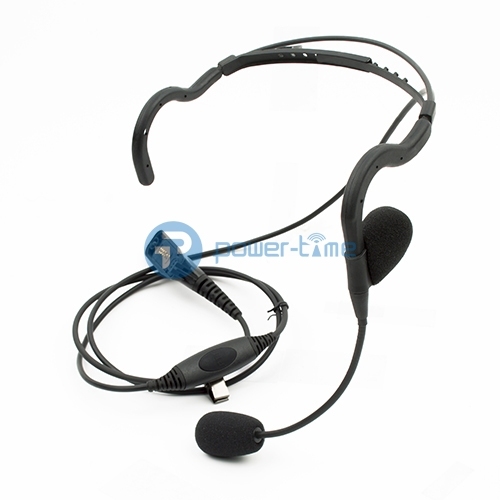

Helmet Headset

Tactical Headset in-line PTT and boom mic

Item No.: PTE-760
Description Advantages Delivery & Warranty
Speaker Specification
Type Transducer Moving coil dynamic speaker
Impedance 16Ω±15% @1KHZ
Sensitivity 110dB±3dB@1KHZ
Resonance freq (F0)400HZ±20%
Frequency respond F0Hz~9KHz
Rated input power 500mW
Maximum input power 800mW

Microphone Specification
Sensitivity Range -34 ± 2dB RL=2.2K Ω Vs=3.0V(DC) 1KHz 0dB=1V/Pa B16
Impedance Max 2.2KΩ 1kHz (RL=2.2KΩ)
Frequency 100-12KHz
Current Consumption Max 0.5uA RL=2.2KΩ Vs=3.0V(DC)
Operation Voltage Range 1.0V-10V (DC)
Max Sound pressure Level 115dB S.P.L  THD<2% at 1K
★ Lightweight and smart, easy to use, High-noise canceling headset includes boom microphone
★ Head band structure for comfortable wear
★ Flexbile microphone with replaceable windhield foam
★ Environmental PU cable reinforced with Kevlar
★ Can be worn underneath helmet
★ Suit for:surveillance personnel and sports enthusiasits such asx motorcylists
20-25 work days after payment,detail delivery date should be decided according to production season and order quantity.

Standard export carton packing with full protection

★ Shipping
By air, land, Sea, EXPRESS(door to door)

★ Warranty
12 months
